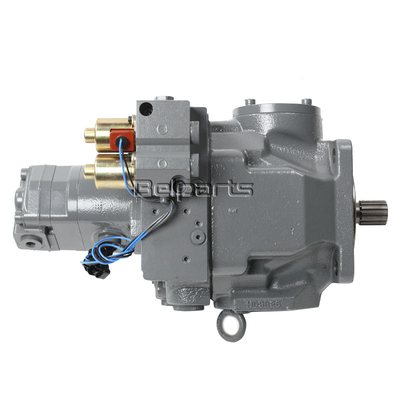

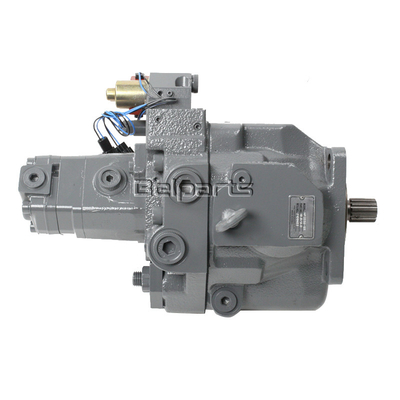

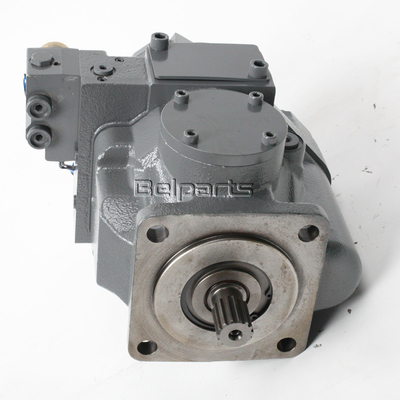

Belparts excavator main pump SOLAR 75 DX80R DH80 hydraulic pump 401-00327 02428571 4100379629 for doosan
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:SOLAR 75 DX80R DH80
Packing Size:84*38*49
Part number:401-00327 02428571 4100379629
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | SOLAR 75 DX80R DH80 |
| Packing Size | 84*38*49 |
| Part number | 401-00327 02428571 4100379629 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Comment | Qty. | Price request |
| 1 | K9009719 | SHAFT ASS'Y | 2 kg | 1 | |
| 1A | K9009720 | SHAFT ASS'Y | 2 kg | 1 | |
| 1B | 2.423-00071 | CASE, SEAL | 1 | ||
| 1C | 2.109-00082 | BEARING | 1 | ||
| 1D | S6500350 | RING, RETAINING | 2 | ||
| 1E | 2.180-00852 | OIL SEAL(35*52*6) -9231 | 1 | ||
| 1F | 2180-1216D87 | O-RING , PUMP | 1 | ||
| 1G | S6510800 | RING, RETAINING | 1 | ||
| 2 | K9009721 | SWASH PLATE ASS'Y | 3 kg | 1 | |
| 3 | K9009722 | ROTARY GROUP | 5 kg | 1 | |
| 4 | K9009723 | PORT PLATE ASS'Y | 20 kg | 1 | |
| 5 | K9009724 | CONTROL SPRING ASS'Y | 1 | ||
| 6 | K9009725 | CONTROL PISTON ASS'Y | 1 | ||
| 7 | K9009726 | PUMP ASSY, GEAR | 3 kg | 1 | |
| 8 | K9009727 | HOUSING | 1 | ||
| 9 | 2.421-00061 | VALVE, AIR BREATHER | 1 | ||
| 10 | 2.408-00026 | BUSHING | 1 | ||
| 11 | K9009728 | STEEL BALL | 1 | ||
| 12 | 2.181-00221 | PLUG | 1 | ||
| 13 | 2.181-00333 | PLUG | 1 | ||
| 14 | 2.180-00622 | PACKING (UCD9148) | 1 | ||
| 15 | K9009729 | SHIM | 1 | ||
| 16 | 2.181-00183 | PLUG | 1 | ||
| 18 | 2.181-00336 | PLUG ASSY | 1 | ||
| 19 | 2.181-00331 | PLUG | 1 | ||
| 22 | 2.181-00185 | PLUG | 1 | ||
| 23 | K9009730 | ORIFICE | 1 | ||
| 25 | K9009731 | SQUARE RING | 2 | ||
| 30 | K9005705 | VALVE, RELIEF | 1 |
